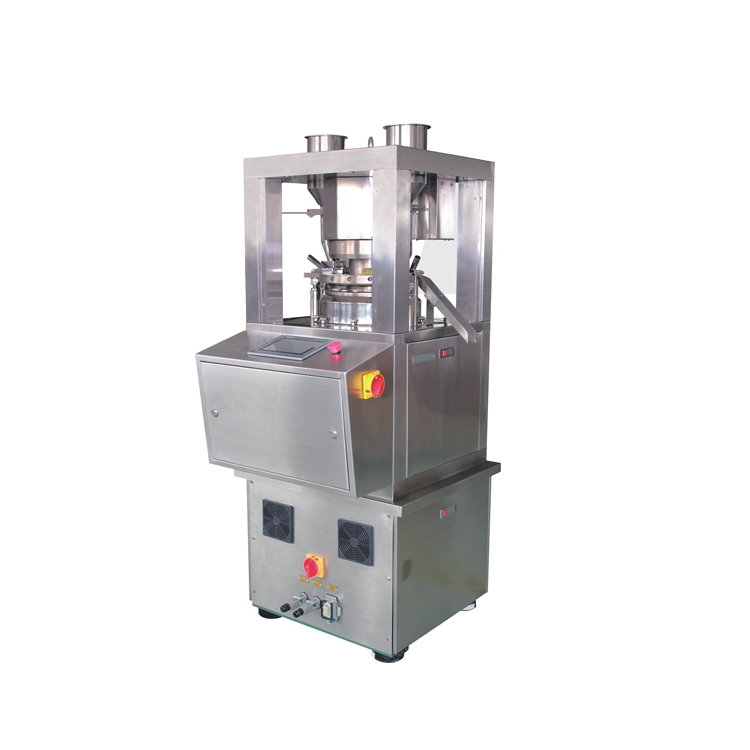

This machine is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
This machine is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
Characteristics
The outside part of the machine is fully- enclosed, and it is made of stainless steel, meeting the G.M.P requirement .
It has transparent windows so that press condition can be observed clearly and the windows can be opened. Cleaning and maintenance is easier.
The machine can press not only round tablets but also different geometrical shape tablets, double- layered and annular tablets, the tablets may have the impressed letters on both sides.
All the controller and devices are located in one side of the machine, so that it can be easier to operate.
An overload protection unit is included in the system to avoid the damage of the punches and apparatus, when overload cccurs
The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, prevent cross pollution
Can be compressed double color tablets
技術參數 Technical parameters
參數
Data
ZPSS226-16
沖模數
Dies (sets)
16
最大壓力
Max Pressure (kn)
60
最大預壓
Max-pre-pressure(kn)
10
最大片徑
Max Dia.of Tablet (mm)
13-16
第一層充填深度
First layer Depth of Filling (mm)
7
第二層充填深度
Second layer Depth of Filling (mm)
0.5-8
轉臺轉速
Rotate Speed (r/min)
4-12
生產能力
Production Capacity (pc/h)
11520
電 壓
Voltage(v/Hz)
220/380
功 率
Motor Power (kw)
2.2
外形尺寸
Overall Size (mm)
1627x965x810
重 量
Weight (kg)
850
