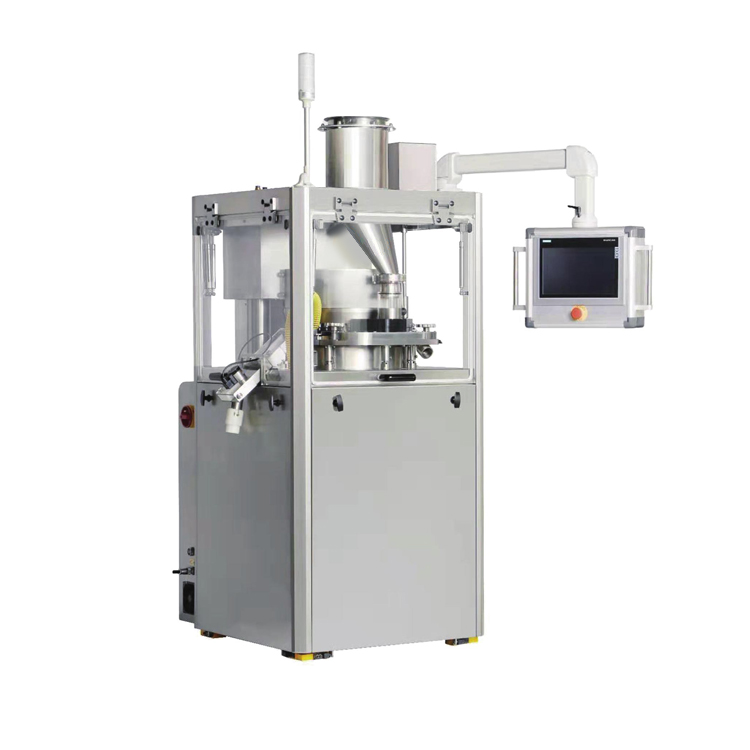

Home » Products » Tablet Press Machine » GZPK 370i High-speed Tablet Press
Common Features
Adopts PLC control with auto protective function
Touch screen operation. Operation menu is easy tounderstand
Force-feeding unit with a good applicability to powder
Central auto lubrication system
Main and pre-pressing, tablets formed twice
No handwheel operation, the position adjustment andmetering adjustment of pressure wheel are all controlled by motor, the speed and precision of adjustment are greatly improved.
Unique features of GZPK series
Auto compensation of powder
Monitoring pressure of each punches and displays
the pressure on the touch screen. There are two
chutes for qualified tablets and defective tablets
Defective tablets can be rejected from one chute
Technical parameters
|
Data |
GZPT26 |
GZPT32 |
GZPT40 |
GZPT50 |
|
No. of stations |
26 |
32 |
40 |
50 |
|
Tooling type |
D |
B |
BB |
TF16 |
|
Output range (Tablet s/h) |
20000-171600 |
25000-211200 |
31000-264000 |
38000-325000 |
|
Rotation speed range (rpm) |
13-110rpm |
|||
|
Main pressure |
100 KN |
|||
|
Pre-pressure |
16KN |
|||
|
Filling depth |
20mm |
16mm |
||
|
Max length of irregular tablet |
1-8mm |
|||
|
Max tablet diameter |
25mm |
16mm |
13mm |
10mm |
|
Max irregular length |
<25mm |
<19mm |
<16mm |
<11 mm |
|
Diameter of die |
38.1 mm |
30.16mm |
24mm |
19mm |
|
Length of punch |
25.35mm |
19mm |
19mm |
16mm |
|
Punch length |
133.6mm |
|||
|
Noise |
≤70db |
|||
|
Main motor power |
7.5kW |
|||
|
Dimension |
820 x1100 x1750mm |
|||
|
Weight |
1600kg |
|||
|
Remarks |
The maximum output refers to the maximum output achieved when the sheet type is circular, the sheet diameter is the smallest and the rotational speed is the highest. The yield is different with different diameter and type. |
|||
