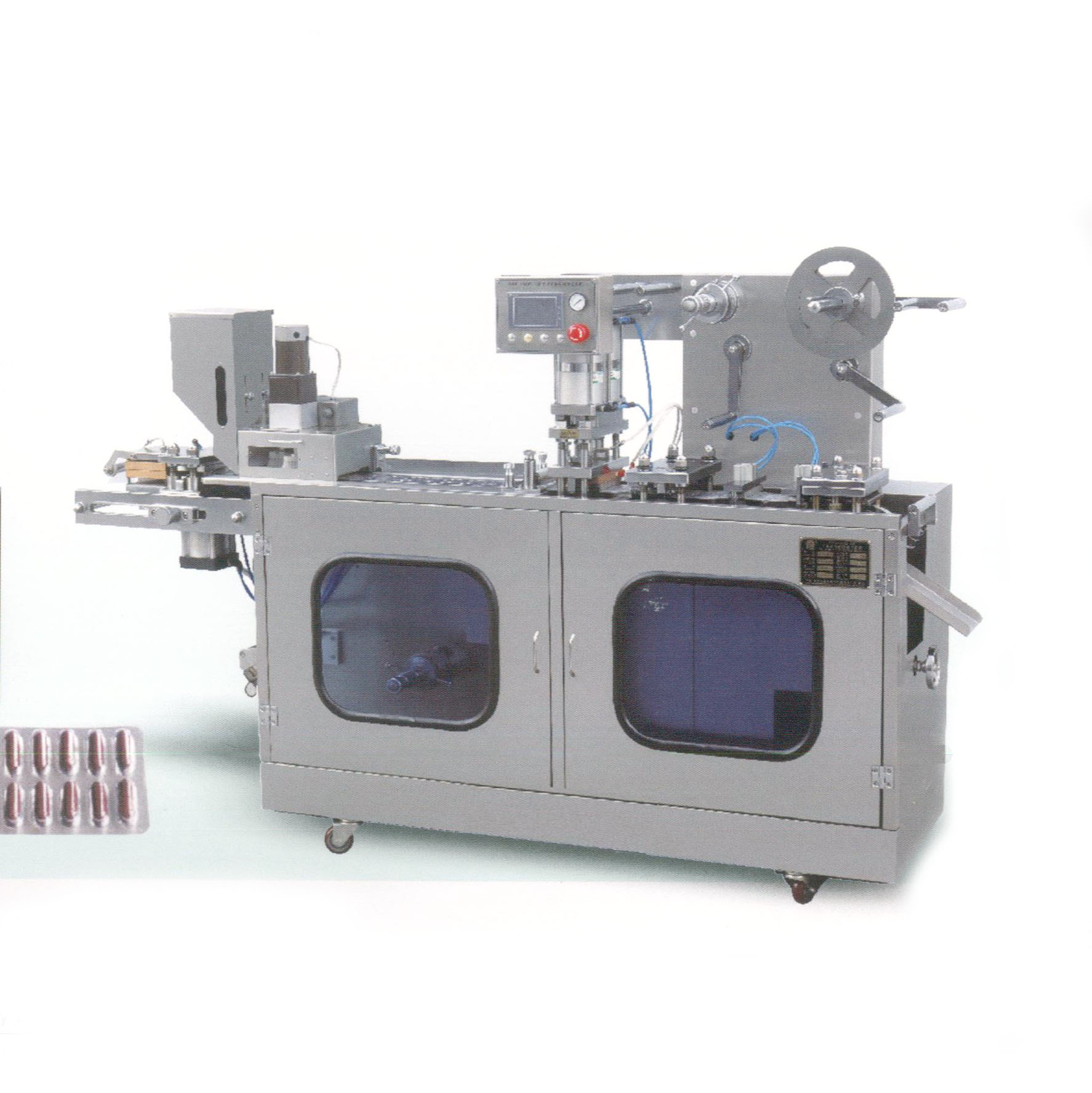

Home » Products » Blister Packing Machine » DPB-140E-I/III Automatic Blister Packaging Machine
Feature
u The main transmission part is adopted with swinging pin-wheel, long life, lower noise, and stable running
u Adjustable stroke can be suitable for various packaging, especially ofr the production requirements of small batch and various kinds of products
u Flat plate structure, can pack some special shaped prodducts, such as elliptic shape, square shape, triangle shape etc
u PVC and Alu Foil adopt motor transportation, sensor control, transportation steady
u 140B-I model machine is suitable for ALU/PVC and ALU/ALU,equipped with special feeder,automatic rejection device
Main technical parameter
u Cutting frequency (times/min) :6-36
u Capacity(10 thousand pcs/h):2-11
u Max.forming area and depth (mm):140*110*14
u Stroke:40-120mm(can be manufactured as user's requirements)
u Standard plate:80*57mm(can be manufactured as user's requirements)
u Air pressure:0.4-0.6MPa
u Air supply:≥0.2m3/min
u Total power:380V/220V 50Hz 3.6Kw
u Main motor power:1.1Kw
u PVC hard pieces (mm):0.15-0.5*155
u PTP Aluminum Foil (mm):0.02-0.035*155
u Dialysis paper (mm):50-100g*155
u Mould cooling:tap water or recycling water
u Machine overall size:2300*500*1410mm
u Machine Weight:600kg
